FPV Drone Kits

If you’re a beginner or intermediate FPV pilot looking to get started—or upgrade your current setup—we’ve put together a curated list of 50+ top FPV drone kits available in 2025. These kits come from trusted retailers like GetFPV, Rotor Riot, PyroDrone, NewBeeDrone, and RaceDayQuads.

You’ll find a variety of kits, from DIY build bundles often recommended by experts like Joshua Bardwell and JohnnyFPV, to fully assembled Ready-To-Fly (RTF) and Bind-And-Fly (BNF) quads.

To make choosing easier, we’ve organized the list by category:

  • Freestyle
  • Racing
  • Cinematic
  • Whoop/Micro

Each kit entry includes key specifications for comparison, such as:

  • Kit type (RTF, BNF, or DIY)
  • Frame/class size
  • Motors
  • Flight controller (FC) and ESC
  • Video system (Analog, DJI O3, HDZero, etc.)
  • Receiver type
  • Battery compatibility
  • Special features like GPS, LEDs, and more

Click Here To See FPV Drone Kit Models

Freestyle FPV Drone Kits (5″ Class and Similar)

Freestyle quads emphasize acrobatic performance and durability for tricks. Many come in 5″ class (the standard for freestyle) and can carry GoPro or similar HD cameras. Kits here include DIY bundles collaborated on by prominent pilots and popular BNF models.

Drone Kit (Type) Frame / Size Motors FC & ESC Video System Receiver Battery Notable Features

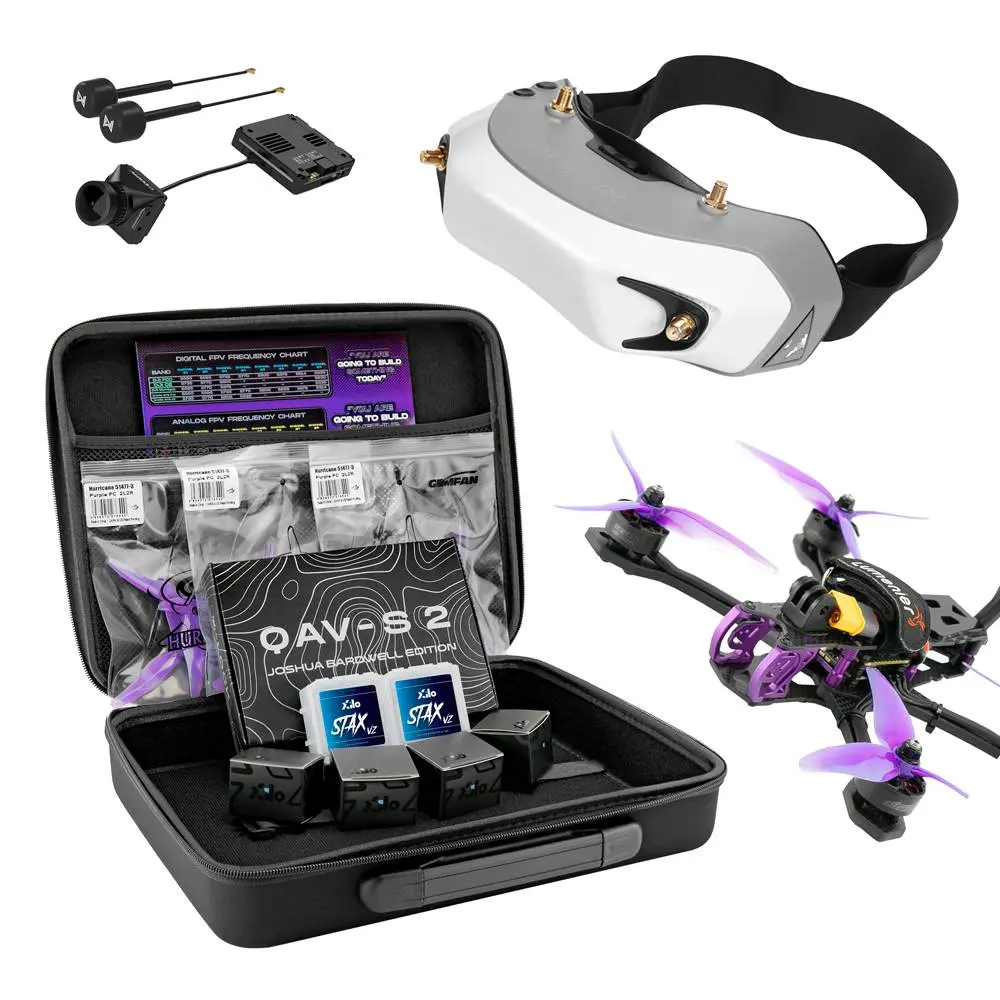

Joshua Bardwell DIY 5″ V2 (Analog) (DIY) QAV-S JB Edition – 5″ Xilo Stealth 2207 1800KV (6S) Xilo Stax V2 F4 FC & 45A 4in1 ESC Analog 5.8GHz (Caddx Ratel 2 + Xilo VTX) Not included (user adds RX) 6S LiPo (1250mAh recommended) Complete DIY bundle with step-by-step build guide. Sturdy 5″ freestyle frame with room for action camera. Dry weight ~350 g.
Joshua Bardwell DIY 5″ V2 (HD) (DIY) QAV-S JB Edition – 5″ Xilo Stealth 2207 1800KV (6S) Xilo Stax V2 F4 FC & 45A ESC DJI HD FPV (Vista w/ Nebula cam) Not included 6S LiPo Same as the analog version, but equipped with DJI HD system. Dry weight ~363 g. Ideal for crystal-clear freestyle footage.
Bardwell Sub-250 3″ (Analog) (DIY) QAV-S JB Edition – 3″ Xilo Stealth 1404 4500KV (3–4S) LUX F4 AIO (35A) Analog 5.8GHz (Caddx Ratel 2 micro + 600mW VTX) Not included 3–4S LiPo (850–1100mAh) Lightweight build under 250g for compliance. Optional prop guards and HD upgrade possible. Comes with cam and antenna.
Bardwell Sub-250 3″ (HD Ready) (DIY) QAV-S JB Edition – 3″ Xilo Stealth 1404 4500KV (3–6S) LUX F722 AIO (35A) HD Ready (supports DJI O3 or Avatar HD) Not included 4S LiPo (850mAh) Sub-250g 3″ quad designed for lightweight HD systems (VTX not included). Great starter platform for HD micro freestyle.
JohnnyFPV QAV-S 5″ Special (DIY) QAV-S 2 JohnnyFPV Edition – 5″ Lumenier 2307 “JohnnyFPV V3” (6S) Argus F7 + 55A 4-in-1 ESC Supports DJI O3 or Avatar HD Optional ELRS/CF 6S LiPo (~1000mAh) Pro-grade cinematic 5″ rig with foldable arms for travel. Aluminum cam mounts and GoPro-ready. HD system optional.
JohnnyFPV QAV-S 7″ Special (DIY) QAV-S 2 JohnnyFPV Edition – 7″ Lumenier 2807 “JohnnyFPV V3” 1500KV (6S) Argus F7 + 55A 4-in-1 ESC Supports DJI O3 or Avatar HD Optional (ELRS/CF) 6S LiPo (1300–1500mAh) Long-range 7″ cruiser with foldable arms and 6 mm thick arms. HD-ready and GoPro-capable. Designed for cinematic mountain dives.
Rotor Riot “Moxy” 5″ (BubbyFPV) (BNF) Moxy frame – 5″ Hypetrain DRIB V3 2306 2650KV (4S) Rotor Riot F722 V4 & Foxeer 65A ESC Choice: DJI O3, Vista, or Avatar HD DJI or ELRS/CF/Ghost 4S LiPo (1500mAh) Pro BubbyFPV freestyle rig, tuned and assembled by Rotor Riot. Durable frame with clean GoPro view and motor bumpers.
Rotor Riot “Skyliner” 5″ (Le Drib) (BNF) Skyliner MK3 – 5″ Le Drib 2306 1750KV (6S) Rotor Riot F722 & 50A ESC DJI O3 or Analog options TBS Crossfire or ELRS 6S LiPo (~1050mAh) Le Drib’s flow-style signature rig. Top-mount battery, HD or analog feed, and smooth flying dynamics. GoPro mount included.
Rotor Riot “CL2” 5″ 4S (BNF) CL2 Frame – 5″ (budget build) 2207 2650KV (4S) F405 FC & 45A ESC Analog 5.8GHz (600mW VTX) FrSky or ELRS 4S LiPo (1500mAh) Entry-level 5″ freestyle quad with thick arms and beginner-friendly power. Uses pre-soldered connectors for easier maintenance.
Rotor Riot “CL2” 5″ 6S (BNF) CL2 Frame – 5″ 2207 1750KV (6S) F405 FC & 45A ESC Analog 5.8GHz (600mW VTX) FrSky or ELRS 6S LiPo (1000–1300mAh) More efficient 6S version of the CL2. Great for intermediates moving up from 4S. Same frame and user-serviceable electronics.
iFlight Nazgul Evoque F5 (BNF) Evoque F5 V2 – 5″ XING2 2207 1800KV (6S) SucceX-E F722 FC & 50A ESC DJI O3 Air Unit (4K) PNP or ELRS 2.4GHz 6S LiPo (1300mAh) Top-tier 5″ BNF with carbon frame and side-panel LEDs. Pre-tuned and DJI HD-ready for crisp video and freestyle performance.
iFlight Nazgul Evoque F6 (BNF) Evoque F6 V2 – 6″ XING2 2506 1500KV (6S) SucceX-E F722 FC & 55A ESC DJI O3 Air Unit (HD) PNP or ELRS 6S LiPo (1500–1800mAh) Larger 6″ version for longer flight times and big-air freestyle. DJI HD system built in, with optional GPS support and GoPro mount.
iFlight Nazgul DC5 (Deadcat) (BNF) DC5 Deadcat Frame – 5″ XING 2208 1800KV (6S) SucceX-E F7 TwinG FC & 50A ESC DJI O3 or Analog (Deadcat layout) PNP or XM+/ELRS 6S LiPo (1300mAh) Deadcat-style 5″ quad with no props in view—perfect for HD cinematic footage. Smooth flight characteristics, ready to carry a GoPro.

Freestyle Highlights

The Bardwell 5″ DIY kits are an excellent choice for first-time builders. They include all the necessary components (except the receiver), and Bardwell’s detailed tutorial videos make the assembly and tuning process easy to follow—even for beginners.

For those looking for professional-grade performance out of the box, Rotor Riot’s Pro-Spec builds—like Bubby FPV’s Moxy and Le Drib’s Skyliner—feature premium components, hand-built and tuned by experienced pilots. These quads are identical to the ones flown in their YouTube content, offering a true plug-and-play experience with top-tier performance.

Many modern freestyle Bind-and-Fly (BNF) options, such as the iFlight Nazgul series, now include DJI O3 digital FPV systems, delivering crystal-clear video feeds and onboard 4K recording. These quads typically support either 4S or 6S LiPo batteries:

  • A 6S setup runs lower-KV motors (~1700–1900KV)

  • A 4S setup uses higher-KV motors (~2400–2700KV)
    Both achieve similar motor RPMs, so the choice often depends on pilot preference and battery availability.

All of the freestyle rigs covered here are capable of carrying a GoPro or action camera, with larger frames (like 6″ or 7″ builds) easily handling full-size GoPros. Common features across these builds include durable carbon fiber frames, high-thrust motors, and reliable electronic components—all essential for surviving the inevitable crashes that come with practicing freestyle flight.

Racing FPV Drone Kits (High-Speed 5″ and 3″)

Racing drones prioritize light weight, high thrust, and agility. They often have minimal extras (no GoPro mounts or heavy guards) and are tuned for maximum speed. Below are top race-ready kits, from entry-level RTFs to pro-caliber 5″ racers used in competitions.

Drone Kit (Type) Frame / Class Motors FC & ESC Video System Receiver Battery Notable Features
iFlight Mach R5 Sport 5″ (BNF/PNP) iFlight Mach R5 – 5″ racing (210 mm) iFlight R5 2207 2050KV (6S) BLITZ Mini F722 FC & 55A 4-in-1 ESC Analog 5.8GHz (Blitz Force 600mW VTX) ELRS 2.4GHz or PNP 6S LiPo (1100–1400mAh) Built for speed—reaches over 200 km/h. Lightweight ~300 g frame with carbon and plastic hybrid build for durability and easy maintenance. Features a clean layout and quick-swap arms.
Foxeer Caesar V2 5″ (BNF) Foxeer Caesar V2 – 5″ racing (195 mm) Foxeer Datura 2207.5 1960KV (4S) Foxeer F722 V3 Mini FC & Reaper 45A ESC Analog 5.8GHz (Reaper Nano VTX + Predator Nano cam) TBS Crossfire Nano 4S LiPo (650–1000mAh) Ultralight ~250 g racer designed for technical tracks. High-performance T700 carbon frame, responsive throttle on 4S. HDZero upgrade-ready with dedicated mounting points.
Emax Hawk Apex 5″ (BNF/PNP) EMAX Hawk Apex – 5″ racing (210 mm) EMAX Eco II 2004 2400KV (4S) F722 AIO FC w/ 25A 4-in-1 ESC HDZero Digital (Whoop VTX + Runcam HD cam) PNP or ELRS 2.4GHz 4S LiPo (850mAh) Uniquely lightweight “micro” 5″ build (~190 g) using smaller motors. Supports both 3.5″ and 5″ props. HDZero system delivers sharp, low-latency digital video. Highly agile and suited for both tight courses and high-speed runs.
HGLRC Sector 5 Race (BNF) HGLRC Sector 5 – 5″ racing quad HGLRC 2207.5 1900KV (6S) Zeus F722 mini FC & 60A 4-in-1 ESC Analog 5.8GHz (TX5G6R VTX 600mW, Caddx Ant cam) PNP or FrSky XM+ 6S LiPo (1000mAh) Designed for serious racers—open-prop frame, clean video system with capacitor and LC filter. Tuned for race-focused Betaflight settings. Optional LED race wires add visibility.
Eachine Tsunami 5″ (RTF Bundle) Eachine Tsunami – 5″ 2306 2400KV (4S) F4 Omnibus FC & 50A BLHeli_S ESC Analog 5.8GHz (25–600mW VTX, 1200TVL cam) FrSky D16 (included) 4S LiPo (1500mAh) Beginner-friendly racing bundle—comes fully ready-to-fly with radio and FPV goggles. Capable of ~100 km/h with Acro and Angle modes pre-set. Great budget entry into FPV racing.
533 TinyTrainer 3″ (DIY/BNF) Five33 TinyTrainer – 3″ Five33 1404 4533KV (3S) TT F4 AIO FC & 25A ESC (whoop size) Analog 5.8GHz (200mW VTX, Nano camera) TBS Crossfire (BNF) 3S LiPo (450mAh) Popular micro racer used for DRL-style practice. Weighs just ~75 g, nimble and fast for indoor or tight outdoor tracks. Available as a kit or pre-built. Ducts optional. Often paired with simulator-based tuning.

Racing Highlights

In FPV racing, weight and power-to-weight ratio are critical factors. The iFlight Mach R5 (6S) is a great example of a modern racing quad, featuring a lightweight 210 mm frame paired with a powerful setup capable of reaching speeds up to 208 km/h in straight-line sprints.

In contrast, the Foxeer Caesar V2 runs a 4S configuration—slightly lighter, with extremely high-KV motors designed for blistering acceleration, especially on tight tracks.

Many high-end racing drones are now embracing HDZero digital FPV, which delivers HD clarity with near-analog latency. The EMAX Hawk Apex, for instance, integrates an HDZero VTX for racers who want the benefits of a digital feed without compromising response time.

To minimize weight, racing quads typically omit non-essentials like GPS modules or GoPro mounts. They favor compact components, such as nano-sized cameras and lightweight antennas, and are often paired with low-latency receivers like TBS Crossfire Nano or ELRS for responsive control and extended range.

For beginners or those training up to the 5″ pro class, kits like the TinyTrainer 3″ and select RTF (Ready-To-Fly) bundles offer a more forgiving entry point. These smaller or slightly detuned racers allow you to build skill and confidence without the higher risk (or cost) of crashing a full-size racing rig.

Whoop & Micro FPV Drone Kits (Tiny & Indoor)

Whoops and micro drones are compact quads—usually with prop sizes under 2.5″ and frame sizes in the 65–75 mm range—designed primarily for indoor flying, tight spaces, or beginner-friendly training.

These drones often feature ducted frames, known as the classic “whoop” design, which provides added safety and durability, especially when flying around people, pets, or furniture.

Many models are available as Ready-To-Fly (RTF) kits, including everything you need to get started: a transmitter, FPV goggles, batteries, and charger. This makes them ideal for new pilots looking to jump into the hobby without having to source individual parts.

Despite their small size, modern micro whoops can be surprisingly capable—offering features like digital HD video, full acro flight modes, and even onboard DVR for recording flights. Whether you’re just learning or want to practice freestyle indoors, whoops are a fun, low-risk way to develop your FPV skills.

Drone Kit (Type) Frame / Size Motors FC & ESC Video System Receiver Battery Notable Features
BetaFPV Cetus Pro Kit (RTF) 85 mm Whoop (ducted) 1102 18000KV (2S) Lite F4 FC (angle & acro modes) Analog 5.8GHz (25mW VTX, FPV cam) BetaFPV LiteRadio (included) 2S LiHV (2×450mAh) All-in-one beginner kit with quad, radio, and FPV goggles. Features Altitude Hold, Acro mode switchability, and Turtle Mode for recovery after crashes. Optical flow sensor adds indoor stability.
EMAX TinyHawk III Plus (RTF/BNF) 76 mm Whoop (ducted) TH0802-II 15000KV (1–2S) EMAX F4 1-2S FC + 6A 4-in-1 ESC Analog or HDZero (up to 200mW) SPI ELRS 2.4GHz (RTF radio) 2×1S 450mAh (runs on 1S or 2S) Versatile micro whoop with analog and HDZero options. RTF kit includes upgraded goggles and controller with USB support. Excellent for both indoor racing and simulator practice.
NewBeeDrone VRDrone 2.5 (RTF) 65 mm Whoop (brushed) Brushed 0615 motors (1S) BeeBrain Lite FC (angle mode only) Analog 5.8GHz (25mW, fixed cam) NBD BeeRemote (included) 1S LiHV 300mAh Budget-friendly starter kit with easy indoor flight. Includes gamepad-style radio and FPV monitor goggles. Tuned for smooth hovering and basic orientation training. No acro mode.
NewBeeDrone Hummingbird V3.1 (RTF) 75 mm Whoop (ducted) 0802 18000KV (1S) BeeBrain BLV4 AIO (Silverware firmware) Analog 5.8GHz (up to 25mW, DVR goggles) NBD FPV Remote (included) 1S LiHV 300mAh Brushless whoop with full Acro capability. Comes with DVR-capable box goggles and a quality transmitter. Ideal for indoor freestyle. LEDs help with visual orientation.
Happymodel Mobula7 ELRS (BNF) 75 mm Whoop (ducted) EX0802 20000KV (2S) Crazybee F4 AIO (5A ESC) Analog 5.8GHz (25–200mW VTX, Runcam Nano) ELRS 2.4GHz (built-in) 2S LiHV 300mAh Fast and capable micro quad—good for indoors or tight outdoor spaces. Betaflight-ready with full Acro mode. ELRS receiver provides excellent range. Includes spare parts.
Happymodel Mobula6 HDZero (BNF) 65 mm Whoop (ducted) EX0802 19000KV (1S) Crazybee X1 AIO (5A) HDZero 65nm VTX (200mW) + Nano HD cam ELRS 2.4GHz 1S LiHV 300mAh The world’s smallest HD whoop, delivering 720p digital video in a 20g frame. Perfect for exploring small indoor areas. Requires HDZero-compatible goggles. Short flight time (~3.5 min).
URUAV/UZ85 Whoop (DIY/BNF) 85 mm Whoop (2″ props) 1103 11000KV (2S) F4 2S AIO FC (8A ESC) Analog 5.8GHz (200mW VTX, Caddx Ant cam) FrSky SPI (BNF) 2S LiHV 450mAh A powerful indoor racer with 2″ tri-blades for added thrust. More advanced than typical whoops—no full prop guards. Good for racing and light freestyle in tight spaces. Includes extras.
HISky Hummingbird (RTF – Example) 100 mm Micro Quad (open prop) 1104 7500KV (2S) F3 FC (angle mode only) Analog 5.8GHz (built-in cam/VTX) Gamepad-style TX (included) 2S 600mAh Toy-grade micro quad with outdoor potential. Self-leveling only, d



Cinematic Highlights

Cinematic FPV drones are built to capture stable, smooth footage, often with an onboard HD camera. This category includes both cinewhoops—compact 3″ ducted quads designed for safe indoor flying—and larger long-range or cinematic rigs in the 5″ to 7″ range, typically equipped with GPS for stable cruising and advanced filming capabilities.

These drones are ideal for creating dynamic action shots, car chase footage, or indoor fly-through videos. Whether you’re shooting commercials, real estate, or social content, cinematic quads offer the control and video quality needed to bring your creative vision to life.

Drone Kit (Type) Frame / Class Motors FC & ESC Video System Receiver Battery Notable Features
GEPRC CineLog35 V2 (O3) (BNF) GEPRC CineLog35 V2 – 3.5″ Cinewhoop SPEEDX2 2105.5 2150KV (6S) GEPRC F722 AIO 45A FC/ESC DJI O3 Air Unit (1080p HD FPV) + 4K camera ELRS 2.4GHz or Crossfire 6S LiPo (850–1050mAh) 3.5″ ducted cinewhoop with O3 system. GPS-enabled for rescue. Strong injection-molded guards, vibration-damped camera mount. Approx. 285g dry weight.
iFlight ProTek 35 O3 (BNF) iFlight ProTek35 – 3.5″ Cinewhoop XING 2205 2300KV (6S) Blitz F7 55A Stack (20×20) DJI O3 Air Unit (20GB onboard DVR) ELRS 2.4GHz or PNP 6S LiPo (1050mAh) Guarded cinewhoop with sturdy frame ring. Excellent for close-proximity work. Records 4K and streams HD FPV. Landing skids double as prop guards.
BetaFPV Pavo30 (Walksnail) (BNF) BetaFPV Pavo30 – 3″ Cinewhoop 1506 3000KV (4S) F405 AIO 35A FC (BLHeli_S) Walksnail Avatar HD VTX (1080p) ELRS 2.4GHz 4S Li-ion (850mAh) Compact cinewhoop for tight spaces. Foam-cushioned ducts, GPS, and buzzer included. Sub-250g capable with Li-ion packs. Low-latency digital HD video.
DJI Avata (RTF) DJI Avata – 5″ Cinewhoop-style DJI 2004 3000KV (4S) DJI Flight Controller (GPS, stability) DJI O3+ (4K/60 DVR, 1080p FPV) DJI (integrated) 4S Li-ion (2420mAh pack) Fully integrated RTF drone for cinematic FPV. Great for beginners. Features include obstacle sensing, GPS hover, and Motion Controller compatibility.
JohnnyFPV QAV-S 7″ (DIY/BNF) Lumenier QAV-S JohnnyFPV 7″ 2807 1500KV (6S) AxisFlying F7 + 55A ESC stack DJI O3 or Walksnail (option) Add RX – Crossfire or ELRS 6S LiPo (~1500mAh) Long-range 7″ cruiser ideal for mountain dives and cinematic car chases. Foldable arms, aluminum camera cage, and GoPro mount. Typically GPS-equipped.
GEPRC Crocodile 7″ O3 (BNF) GEPRC Crocodile 7 – 7″ LR frame GR2306.5 1350KV (6S) GEP F722 MK4 FC & 60A 4in1 ESC DJI O3 Air Unit (HD) TBS Crossfire 6S LiPo (3000–4000mAh) Designed for long-range cruising with barometer, compass, and GPS. Deadcat frame keeps props out of view. HD FPV and recording. Return-to-home ready.
Flywoo Explorer LR 4″ (BNF) Flywoo Explorer LR – 4″ Micro LR Flywoo NIN 1404 2750KV (4S) Goku F745 AIO 16A FC (with barometer) DJI O3 Lite or Analog (varies by version) ELRS 915MHz 4S Li-ion (18650 pack) Pioneering sub-250g micro long-range quad. Efficient 4″ bi-blades for 20+ minute flights. Comes with GPS, HD cam mount (e.g., for naked GoPro).
